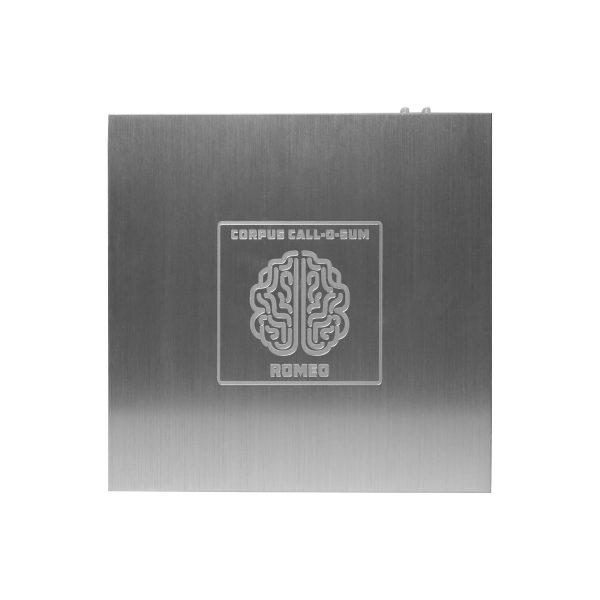

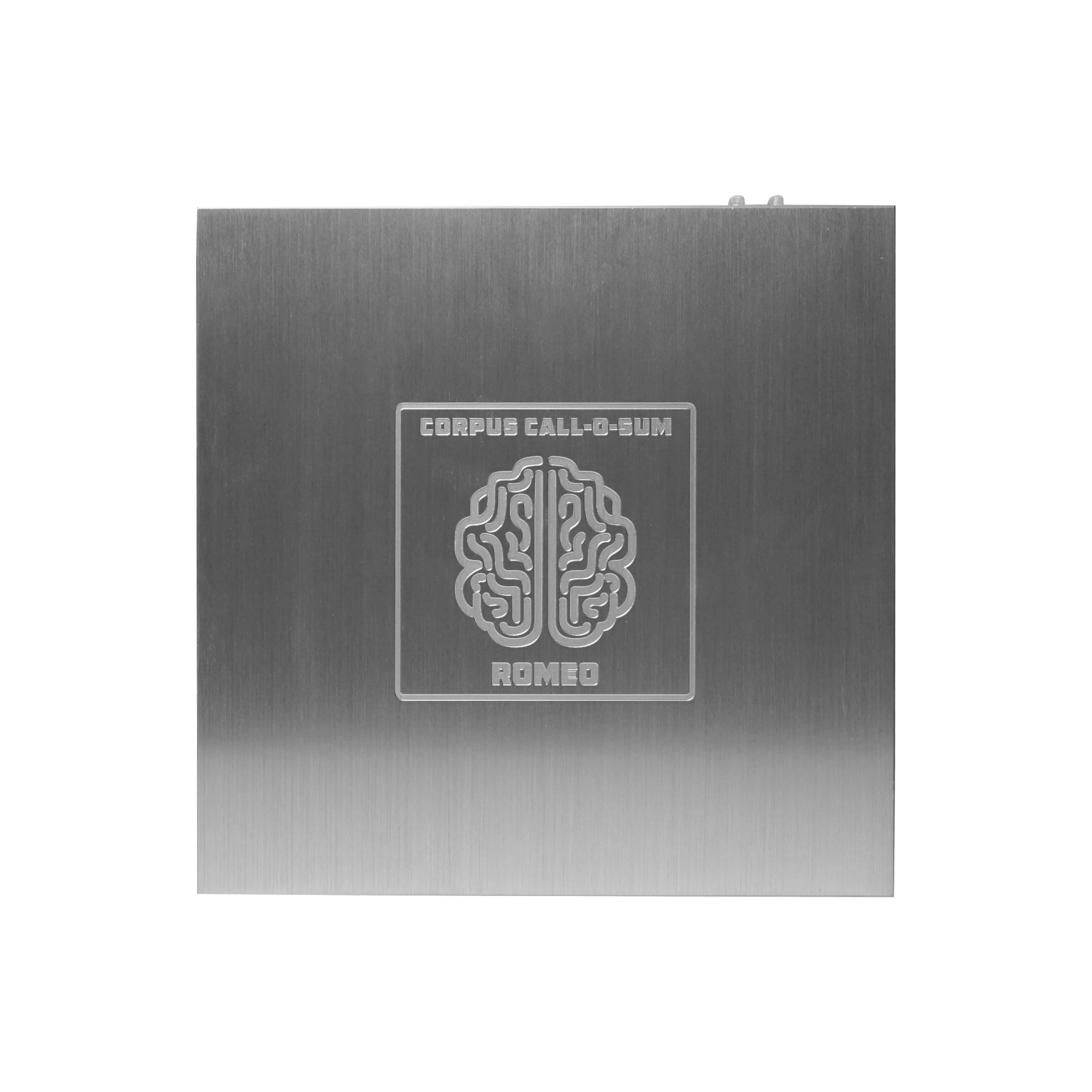

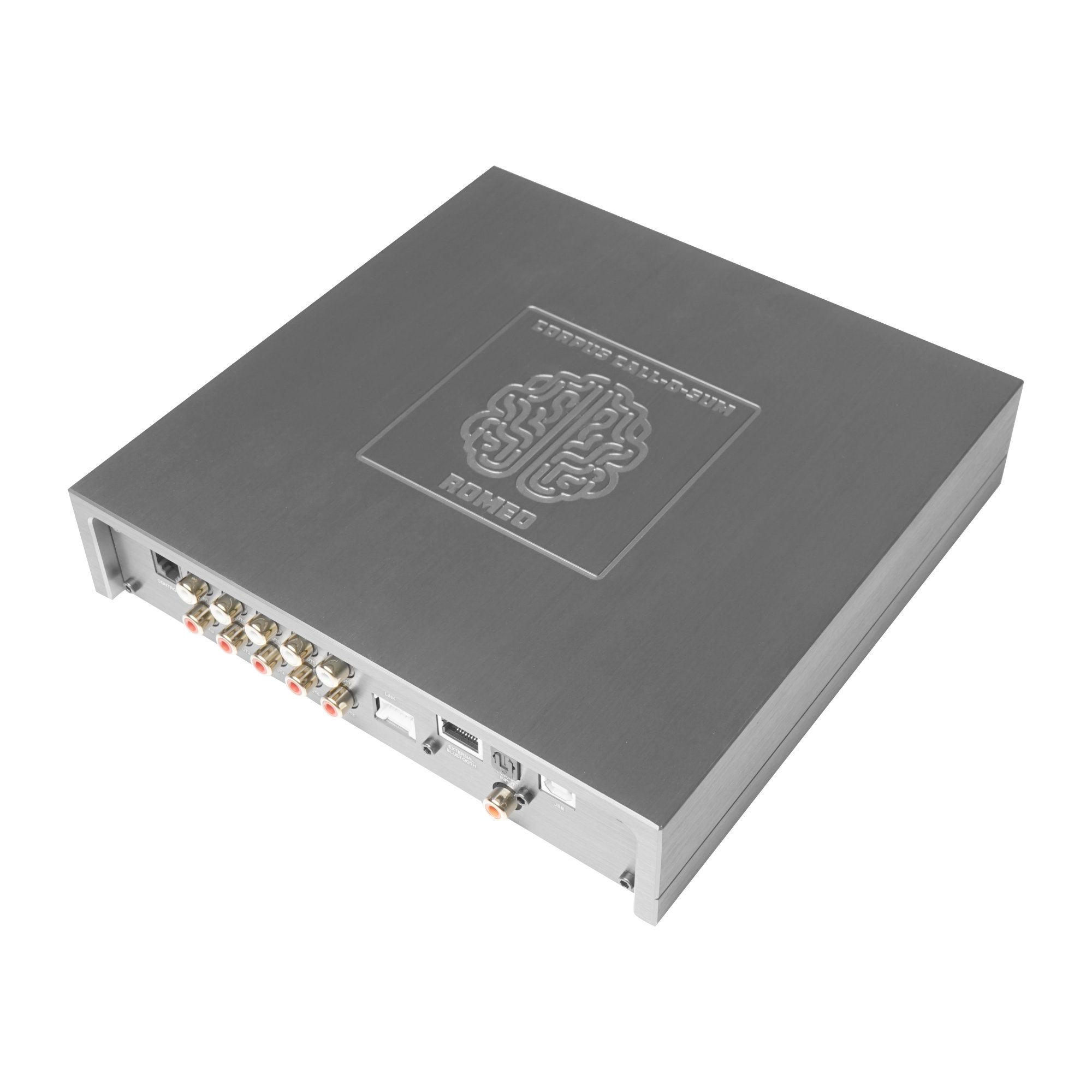

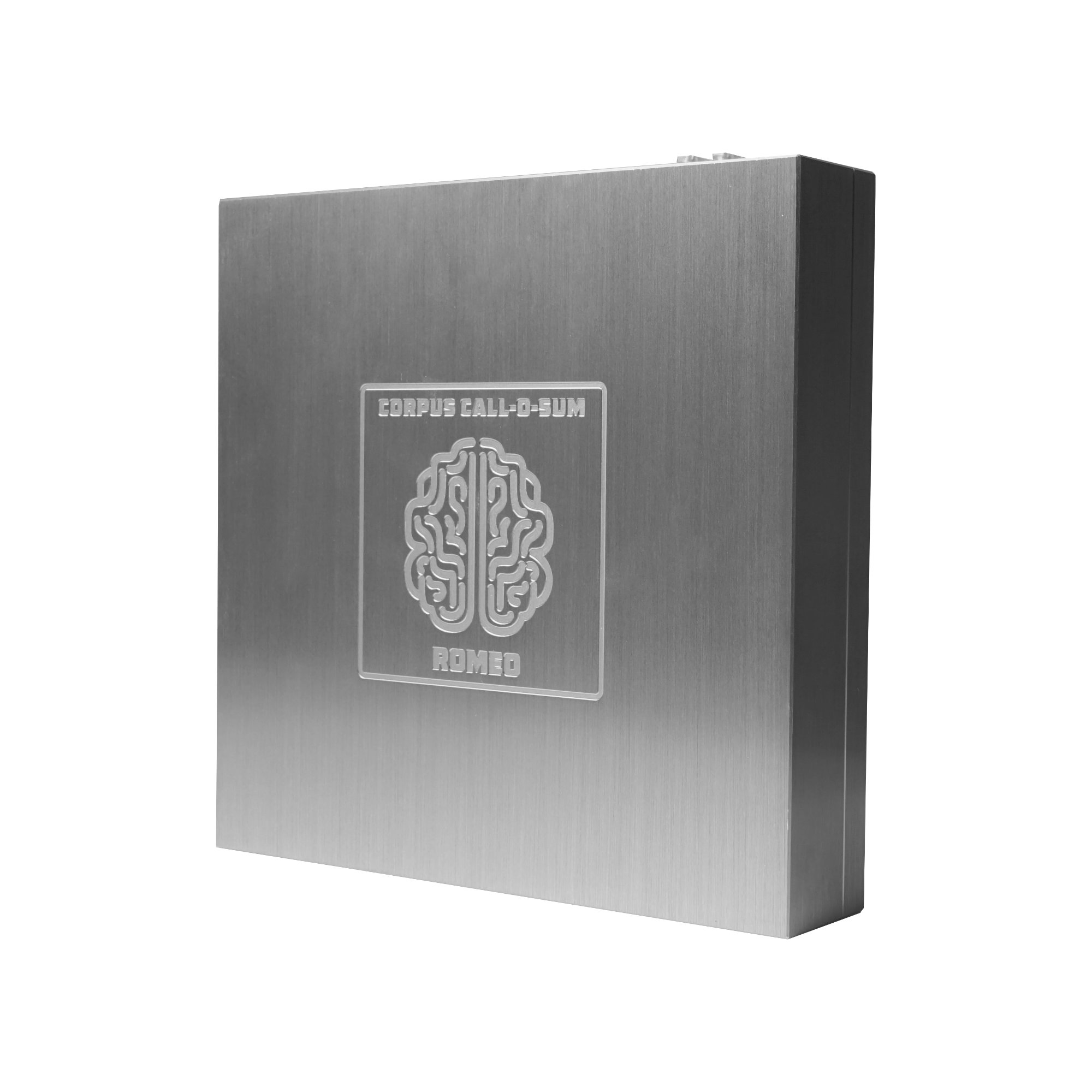

Dominations Romeo

Global Technical Specifications
• Active Range(RCA): ≥100 dB
• S/N: ≥98 dB
• THD: ≤0.01 %
• Frequency Response: 20 Hz ~20 kHz

Input Impedance
• Low level input: 10 kΩ
• High level input: 4.7 Ω

Output Impedance
• Low level output: 100 Ω
• High level output

Rated Power
• CH1~4: 4×50W
• CH5~6: 2×80W

Max Power
• CH1~4: 4×100W
• CH5~6: 2×160W

Signal Input Range
• Low level RCA input: 6 Vpp
• High level input: 26 Vpp/32Vpp/50Vp (Each channel can be switched)

Signal Output Range
• Low Level RCA output: 6 Vpp
• High level output:
o CH1~4: 40Vpp
o CH5~6: 50Vpp
o Bridge: 100Vpp

Working Temperature
• -20 ~ 70° C

Power Rating
• Voltage: DC 9 V~16 V
• Current: 500mA~40A

Trigger On
• Remote Input
• ACC control thru Remote in.
• High level signal input at H1+/H1-
• Selected by switch

Trigger Out
• Delay Remote Output +12 V (0.2 A max)

Standby Power
• <3mA

Gross Weight
• Approx 3.5kg

Product Dimension
• **216(L) 216.9(W) 47.5(H)mm

Output Volume Range
• Mute,-39 dB ~ 6 dB.

Equalizer
• 31 Bands parametric EQ for every channel
o 1. Frequency Range : 20 Hz ~ 20 kHz,
o 2. Center Frequency : 1Hz Accuracy,
o 3. Q factor from : 0.404 ~ 28.85,
o 4. Gain from : -12.0 dB ~ +12.0 dB,
 0.1 dB Accuracy.

Filters/Crossover
• Each channel is equipped with a multi-stage high-low-pass independent filter.
o 1. Filter type : Butterworth,Linkwitz-Riley, Bessel,
o 2. Filter point : 20 Hz~20 kHz in 1 Hz Resolution.
o 3. Filter Slope : 6dB/Oct~48dB/Oct.

Time Management
• Phase and delay adjustment for each channel
o 1. Phase : In Phase or Out Phase (0°~180°).
o 2. Time delay : 0.000 to 20.000 ms
 0 to 692 cm, 0 to 273 inch.

Scene Operation
• The machine can save 6 preset music scenes.

Input & Output Connectivity
• 6 channels high-level,
• 2 channels RCA , external
• Bluetooth input, optical
• fiber coaxial input,
• Linkable to 16 Ch

Output Signal Type
• 8 channels low-level RCA.
• 6 channels power amplifier,
o CH 1-4 : 4 x 50w
o CH 5-6 : 2 x 80w
o Bridge : 1 x 160w
• Option for controller.
