Dominations Yakin-Iku

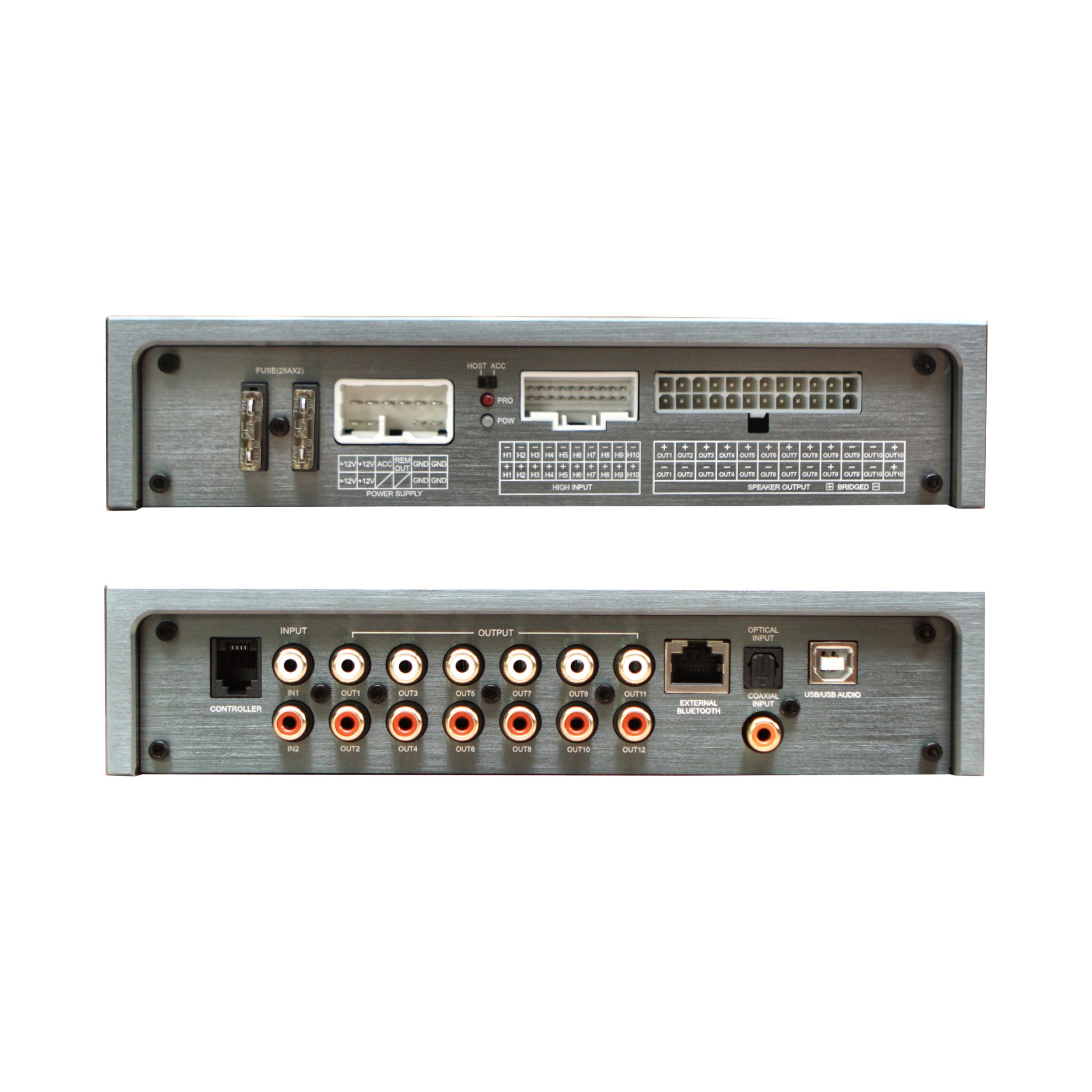

Inputs:
10 channels high-level
2 channels RCA (external)
Bluetooth
Optical/Coaxial
USB-DAC

Audio Output Signal Type:
12 channels low-level RCA
10 channels power amplifier
CH 1-4: 4 x 25W
CH 5-8: 4 x 50W
CH 9-10: 2 x 80W
Bridge: 2 x 160W

Options:
Option for controller

Global Technical Specifications

Active Range (RCA): ≥100 dB
S/N: ≥98 dB
THD: ≤0.05%
Frequency Response: 20 Hz ~ 20 kHz

Input Impedance:
Low level input: 10 kΩ
High level input: 4.7 Ω

Output Impedance:
Low level output: 100 Ω
High level output:
Rated Power: 4×25W + 4×50W + 2×80W
Max Power: 4×50W + 4×100W + 2×160W

Signal Input Range:
Low level RCA input: 7 Vpp
High level input: 50 Vpp (default), 26 Vpp/32 Vpp (switchable)

Signal Output Range:
Low level RCA output: 7 Vpp
High level output:
CH1~4: 26 Vpp
CH5~8: 32 Vpp
CH9~10: 50 Vpp
Working Temperature: -20 ~ 70°C

Power Rating:
Voltage: DC 9 V~16 V
Current: 500 mA~50 A

Trigger On:
Remote Input: ACC control through Remote in
High level signal input at H1+/H1- (selected by switch)
Trigger Out: Delay Remote Output +12 V (0.2 A max)

Standby Power: <3 mA
Gross Weight: Approx 2.54 kg
Product Dimension: 216.9 (L) * 216.0 (W) * 47.5 (H) mm
Output Volume Range: Mute, -39 dB ~ 6 dB

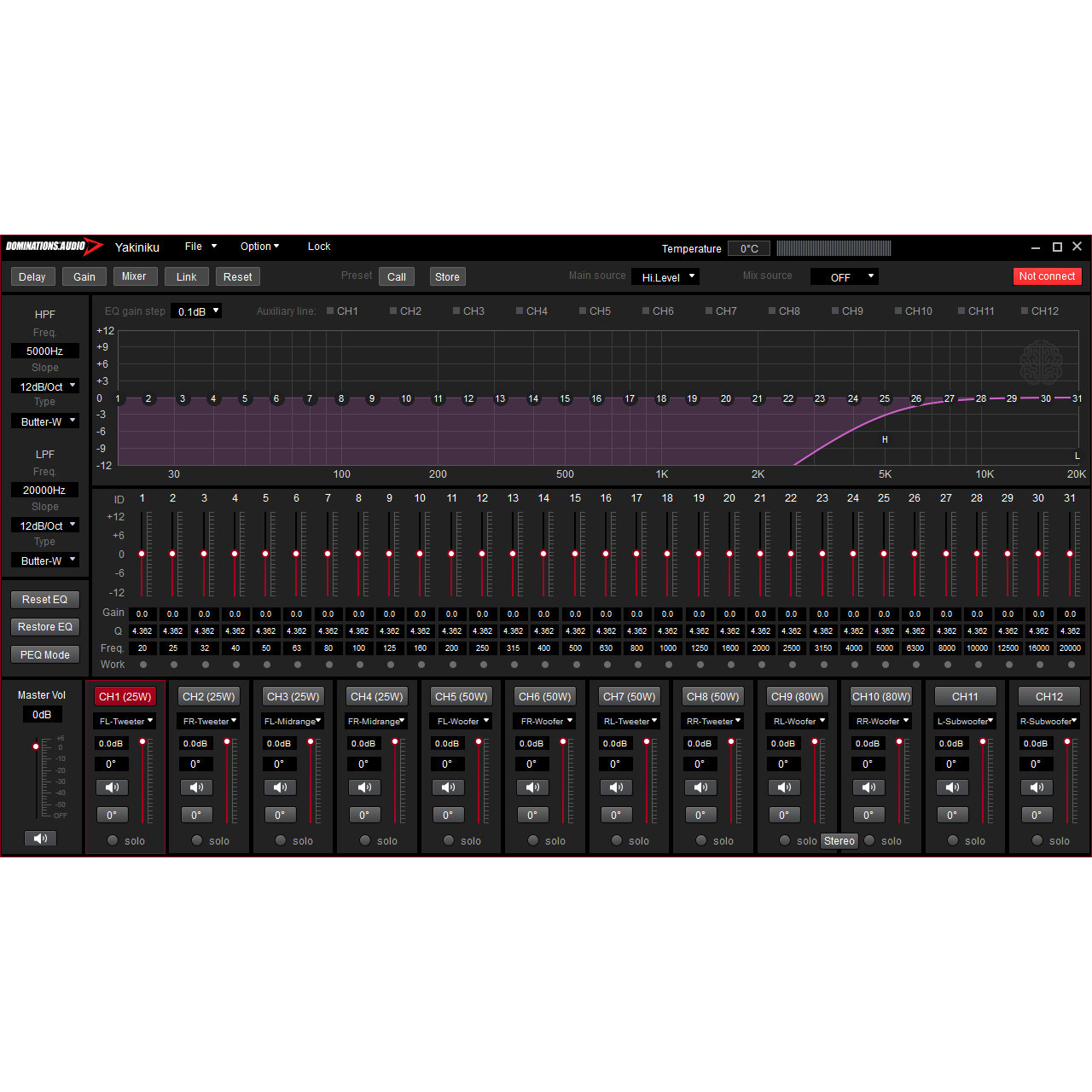

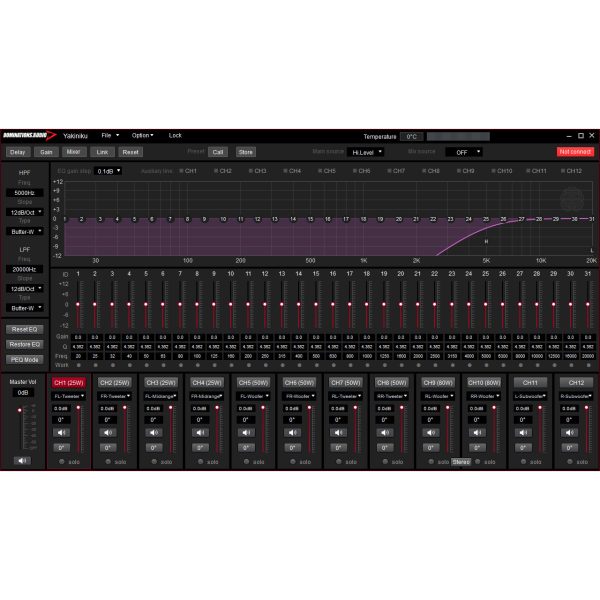

Equalizer:
31 Bands parametric EQ for every channel
Frequency Range: 20 Hz ~ 20 kHz
Center Frequency: 1 Hz Accuracy
Q factor: 0.404 ~ 28.85
Gain: -12.0 dB ~ +12.0 dB, 0.1 dB Accuracy

Filters/Crossover:
Each channel is equipped with a multi-stage high-low-pass independent filter
Filter type: Butterworth, Linkwitz-Riley, Bessel
Filter point: 20 Hz ~ 20 kHz in 1 Hz Resolution
Filter Slope: 6 dB/Oct ~ 48 dB/Oct

Time Management:
Phase and delay adjustment for each channel
Phase: In Phase or Out Phase (0°~180°)
Time delay: 0.000 to 20.000 ms, 0 to 692 cm, 0 to 273 inch

Scene Operation: The machine can save 6 preset music scenes.
