Audison AV 6.5 P II Woofer | 300 W Peak Power | 165 mm (6.5 in.) | 4 ohm

AV 6.5 P II

AV 6.5 P II

Woofer | 300 W Peak Power | 165 mm (6.5 in.) | 4 ohm

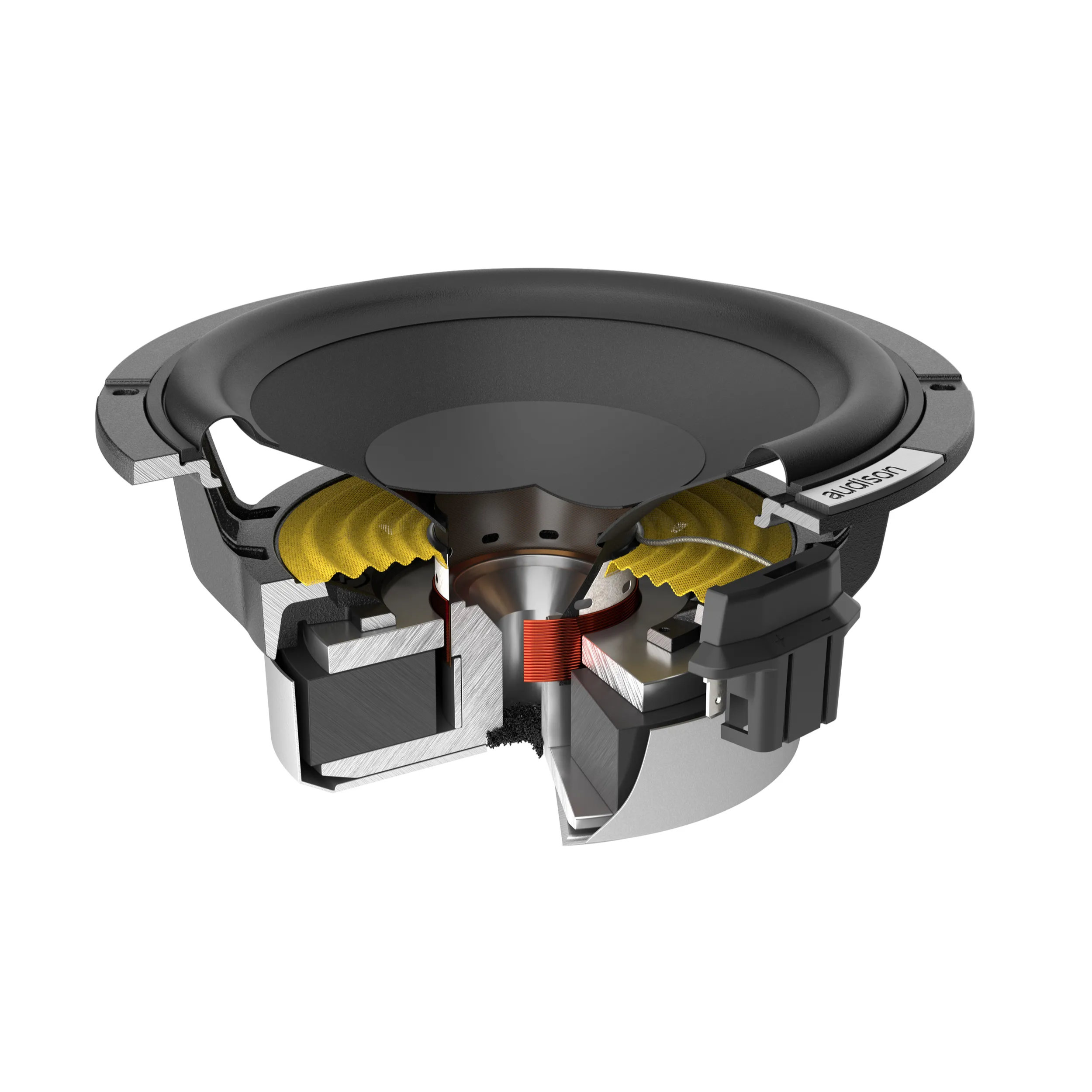

The Audison VOCE II AV 6.5 P II woofer is engineered to deliver exceptional sound clarity and precision. It naturally rolls off at off-axis positions, eliminating the need for a low-pass filter in most door installations and reducing phase shifts common with other filters. It can employ a gentle 6 dB/Octave filter to enhance low and mid-bass tones, further enriching sound quality. The woofer’s OEM-style connector, compatible with FASTON terminals and designed for seamless integration, features a unique T-shaped pole piece with an aluminum ring to minimize distortion and enhance frequency response.

Technical Specs
Nominal diameter 165 mm
Impedance 4 Ohm
Minimum Impedance 3.1 Ohm
Power Handling – Peak 300 W
Power Handling – Continuous 150 W
Sensitivity 91 dB
SPL measured at 2.83V/1m;
Frequency Response 45 – 7500 Hz
(-6dB)
Voice Coil Ø 40 mm
Chassis Material ALUMINIUM
Magnet Material HIGH DENSITY FLUX FERRITE
Magnet size D x d x h 100 x 45 x 18 (3.9 x 1.8 x 0.7) mm (in.)
Voice Coil Material CCAW
Former Material GLASS FIBER
Cone Material SEMI-PRESSED PAPER
Surround Material RUBBER
Xmax 4.95 mm
Xmech 7.5 mm
Voice Coil Winding Height 13 mm
Gap Height 6 mm
Electric-acoustic Specs
Re 2.9 Ohm
Fs 66 Hz
Le 0.3 mH
Vas 9.09 l
Mms 15.3 g
Cms 0.38 mm/N
BL 5.5 T•m
Qts 0.57
Qes 0.61
Qms 9.06
General
Weight 1.6 kg
