- Class D Monoblock Power Amplifier
- Low / High Level Inputs
- Sub Sonic Control
- LPF Control
- Bass Boost Control

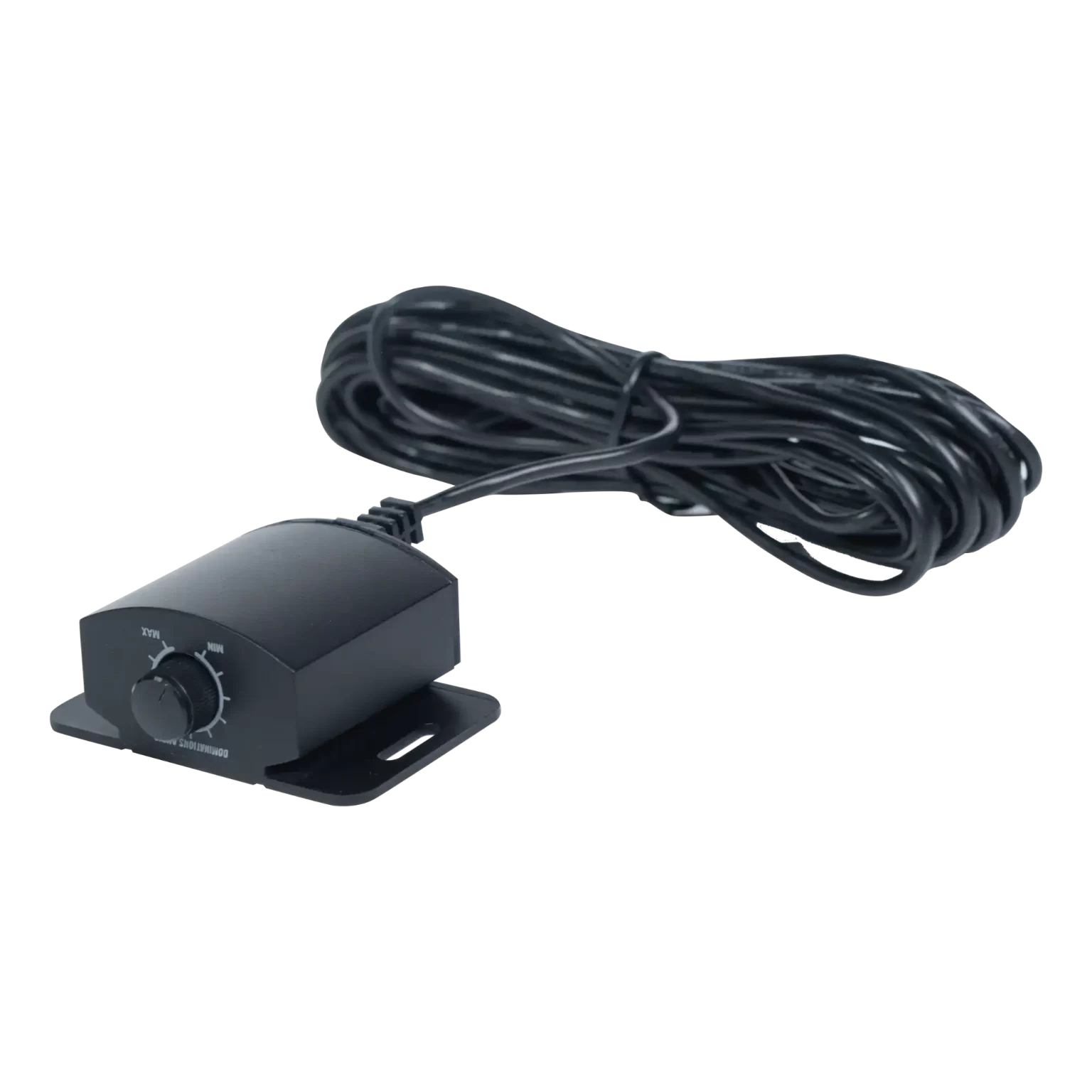

- Remote Subwoofer Control
- LED Power and Protection Indicator
- Thermal Protection Circuit
- Short Protection Circuit
Number of Channels 1
Amplifier Type Class D
4 ohm RMS Power 370W x1
2 ohm RMS Power 680W x1
Bridged 4 ohm RMS Power /
1 ohm RMS Power 1000W x1
Min. Speaker Impedance 1ohm
Frequency Response 10Hz – 20KHz
S/N Ratio ≥90dB
T.H.D ≤0.2%
Input Sensitivity 300mV – 8V
Low Pass Freq. 50Hz – 250Hz
High Pass Freq. /
Subsonic 15Hz – 50Hz
Bass Boost 0 – 12dB
AGU Fuse 100A
Supply Voltage 9 – 16V DC
Dimensions 246x123x58mm
