UNIQUE BASS
5 3/4” (145MM) SUBWOOFER

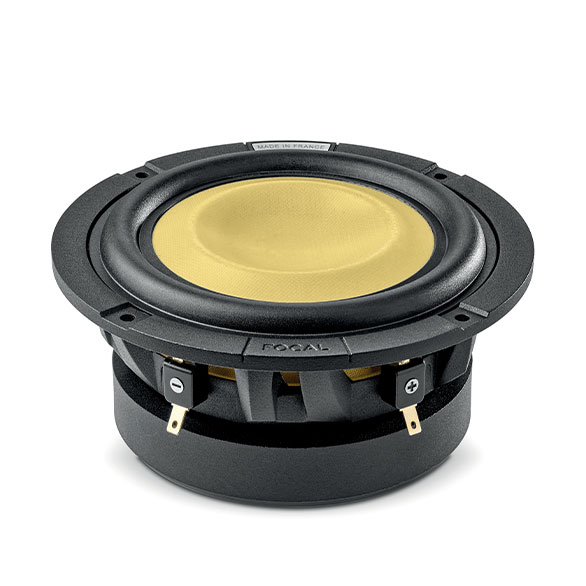

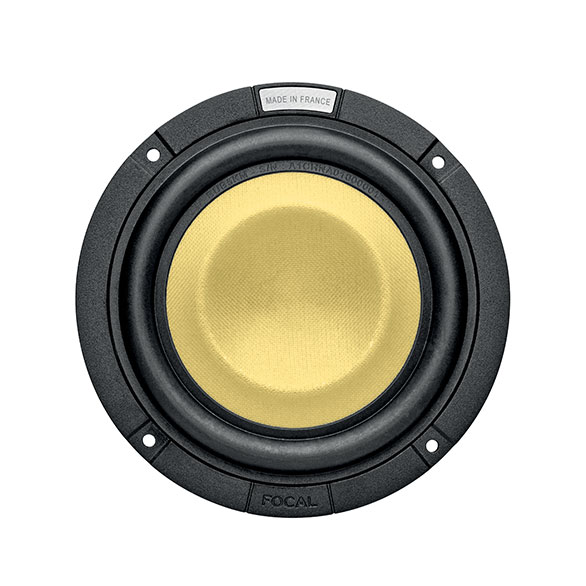

Like all the speaker drivers in the K2 Power M range, the 5 3/4” (145mm) subwoofer 5 KM is fitted with Focal’s iconic aramid fibre K2 sandwich cone. And for an even bigger performance, Focal’s engineers have combined it with their famous ‘M’-profile. This shape of cone offers better frequency response and better sound dispersion, and reduces speaker driver depth. Attributes that go hand-in-hand with the power and dynamics delivered by the K2 cone. Your system delivers faultless music and pure, high-fidelity sound to provide the ultimate in driving and listening pleasure.

With these active K2 Power M products, you can build your own “à la carte” audio system, to create the system you really want. These powerful products are also ultra compact for easy installation into all cabins.

Key points
Exclusive, patented Focal technologies
Compactness and exceptional power handling
Active product
Aluminium grille (optional)

Type Subwoofer
Subwoofer 5″ (145mm)
Depth 23/8″ (69mm)
Cone K2 Sandwich, M-profile
Maximum power 400W
Nominal power 200W RMS
Sensitivity (2.83V/1m) 86dB
Frequency response 35Hz – 250Hz
Impedance 4 Ώ
Magnet Ferrite
Voice-coil diameter 23/8″ (60mm)
Suspension Catenary profile
Sealed enclosure (Volume/F-3dB) 4L / 41Hz
6L / 39Hz
